Magnetic Stripe Machine For Positioning And Bonding Magnetic Strip To Plastic Sheet

Brand Name : YL

Model Number : YMSB-1

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1 set per 35 days

Delivery Time : 30-35days

Packaging Details : 1 plywood case

Applicable materials : Plastic sheet: 0.25~0.8mm thick

Dimension : L800*W700*H1500mm

Weight : about 150kgs

Productivity : 200-400 sheets/h

Mag. stripe model : ISO/IEC7811 HiCo/LoCo

Mag. stripe width : 12.7mm / 6.35mm, wheel diameter: 380mm

Contact Now

  Manual Magnetic Stripe Bonding Machine YMSB-1 Designed For Positioning And Bonding Magnetic Strip To Plastic Sheet



Manual Magnetic Stripe Bonding Machine YMSB-1

card magnetic stripe bonding machine, magnetic stripe laying machine, magnetic stripe applicator, magnetic stripe pasting machine, card machine, smart card machine



1. Introduction of Manual Magnetic Stripe Bonding Machine YMSB-1 Designed For Positioning And Bonding Magnetic Strip To Plastic Sheet



Magnetic Stripe Bonding Machine YMSB-1 is designed for positioning and bonding magnetic strip to plastic sheet before lamination.



Power supply AC380V/50HZ
Air resource 6 kg /c(dry)
Power 3kw
Temperature 0-400℃(adjustable)
Temp. precision ±2℃
Mag. stripe bonding precision ±0.2mm
Weight  150kgs
Productivity   200-400 sheets/h
 Mag. stripe model  ISO/IEC7811 HiCo/LoCo
 Mag. stripe width  12.7mm / 6.35mm, wheel diameter: 380mm
 Mag. Stripes Qty  5~8 tapes optional
Layout  3*8, 4*8, 5*5 (optional)
 Operator number  1 person
 Dimension  L800*W700*H1500mm
 Applicable materials  Plastic sheet: 0.25~0.8mm thick

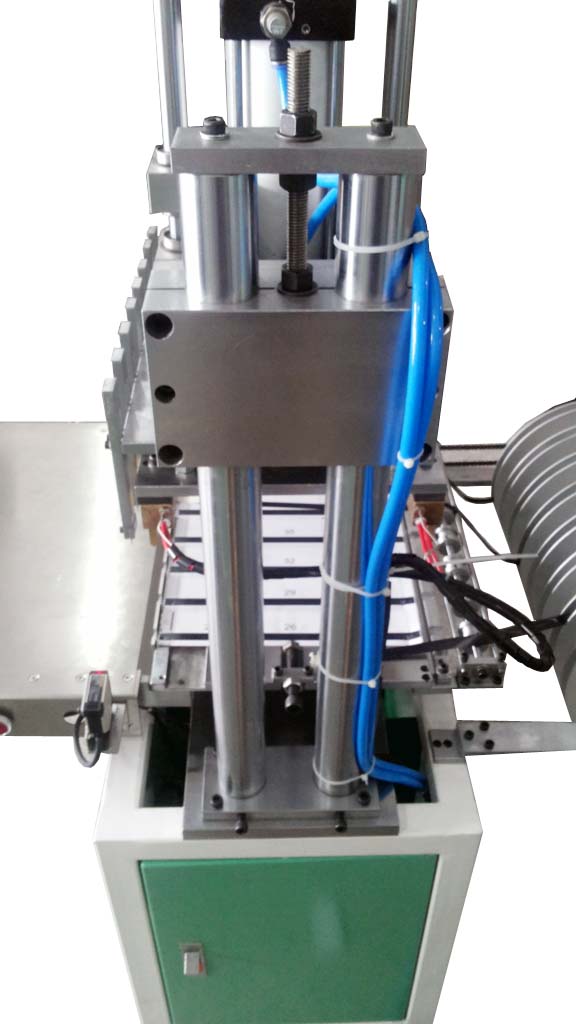

Magnetic Stripe Machine For Positioning And Bonding Magnetic Strip To Plastic Sheet



2. Features of Manual Magnetic Stripe Bonding Machine YMSB-1 Designed For Positioning And Bonding Magnetic Strip To Plastic Sheet





It is controlled by relay. The temperature is controlled by reliable imported temperature controller, and the time is controlled by time relay.

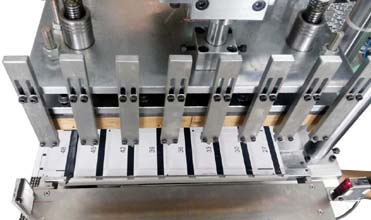

Magnetic Stripe Machine For Positioning And Bonding Magnetic Strip To Plastic Sheet





3. Technical parameters of Manual Magnetic Stripe Bonding Machine YMSB-1 Designed For Positioning And Bonding Magnetic Strip To Plastic Sheet



1). Power supply:AC380V/50HZ

2). Air resource: 6 kg/c㎡(dry)

3). Power: 3 KW

4). Temperature: 0-400℃(adjustable)

5). Temp. precision: ±2℃

6). Mag. stripe bonding precision: ±0.2mm

7). Weight: 150Kg

8). Productivity: 200-400 sheets/h

9). Mag. stripe model: ISO/IEC7811 HiCo/LoCo

10). Mag. stripe width: 12.7mm / 6.35mm, wheel diameter: 380mm

11). Mag. Stripes Qty.: 5~8 tapes optional

12). Layout: 3*8, 4*8, 5*5 (optional)

13). Operator number: 1

14). Dimension: L800*W700*H1500mm

15). Applicable materials: Plastic sheet: 0.25~0.8mm thick

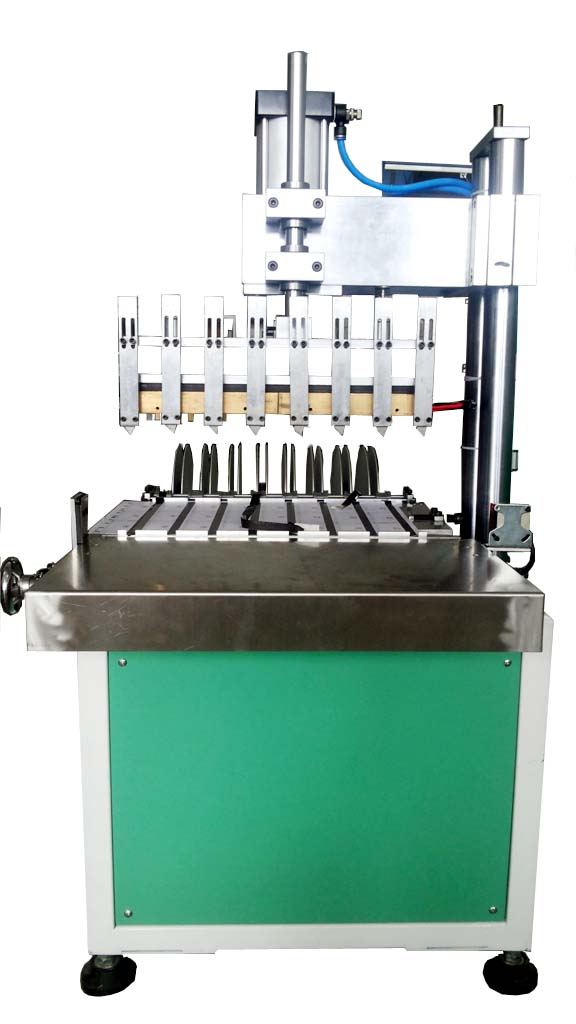

Magnetic Stripe Machine For Positioning And Bonding Magnetic Strip To Plastic Sheet



4. Application of Manual Magnetic Stripe Bonding Machine YMSB-1 Designed For Positioning And Bonding Magnetic Strip To Plastic Sheet

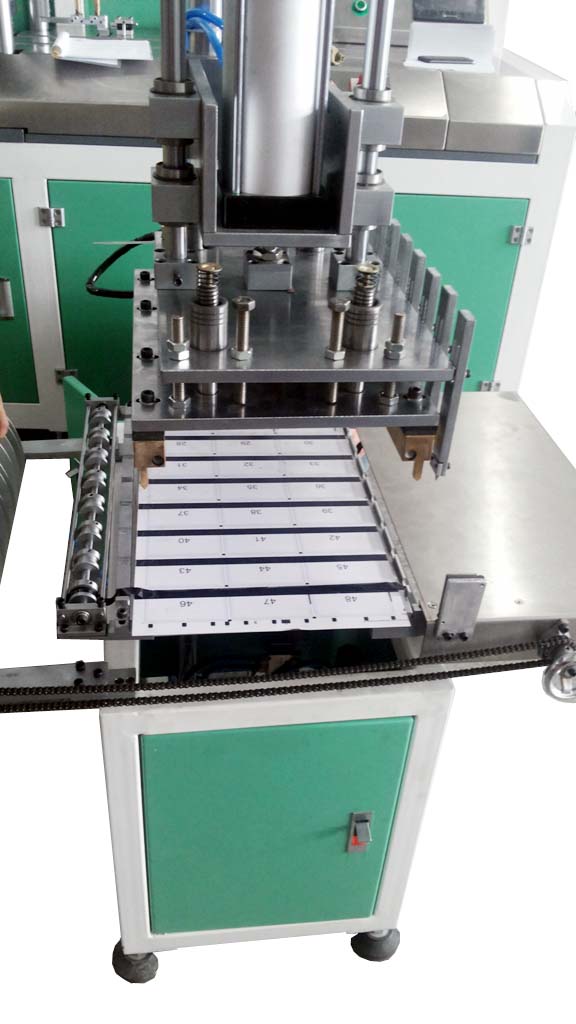

Magnetic Stripe Machine For Positioning And Bonding Magnetic Strip To Plastic Sheet



Double air cylinder is used as power, and the bonding head pressure is adjustable.
