Automatic IC Card Milling Machine/ IC card Slot Milling Machine/Contact IC card Slotter YIM-4000+

( Contact IC card slot milling machine, Contact IC card slotter, Card machine, smart card production machine)

1. Introduction of Speed 3500~4500pcs/Hour Bank Card Slot Milling Machine Contact IC Card Slotter YIM-4000+

Automatic IC Card Milling Machine YIM-4000+ is designed for milling the slot or cavity for IC chip implanting on plastic card surface in a precise and speedy way. It features robust design, reliable performance and fully automatic operation. It is controlled by PLC, which can well ensure easy parameter setting and stable performance.

2. Machine Functional Configuration of 3500~4500pcs/Hour Bank Card Slot Milling Machine Contact IC Card Slotter YIM-4000+

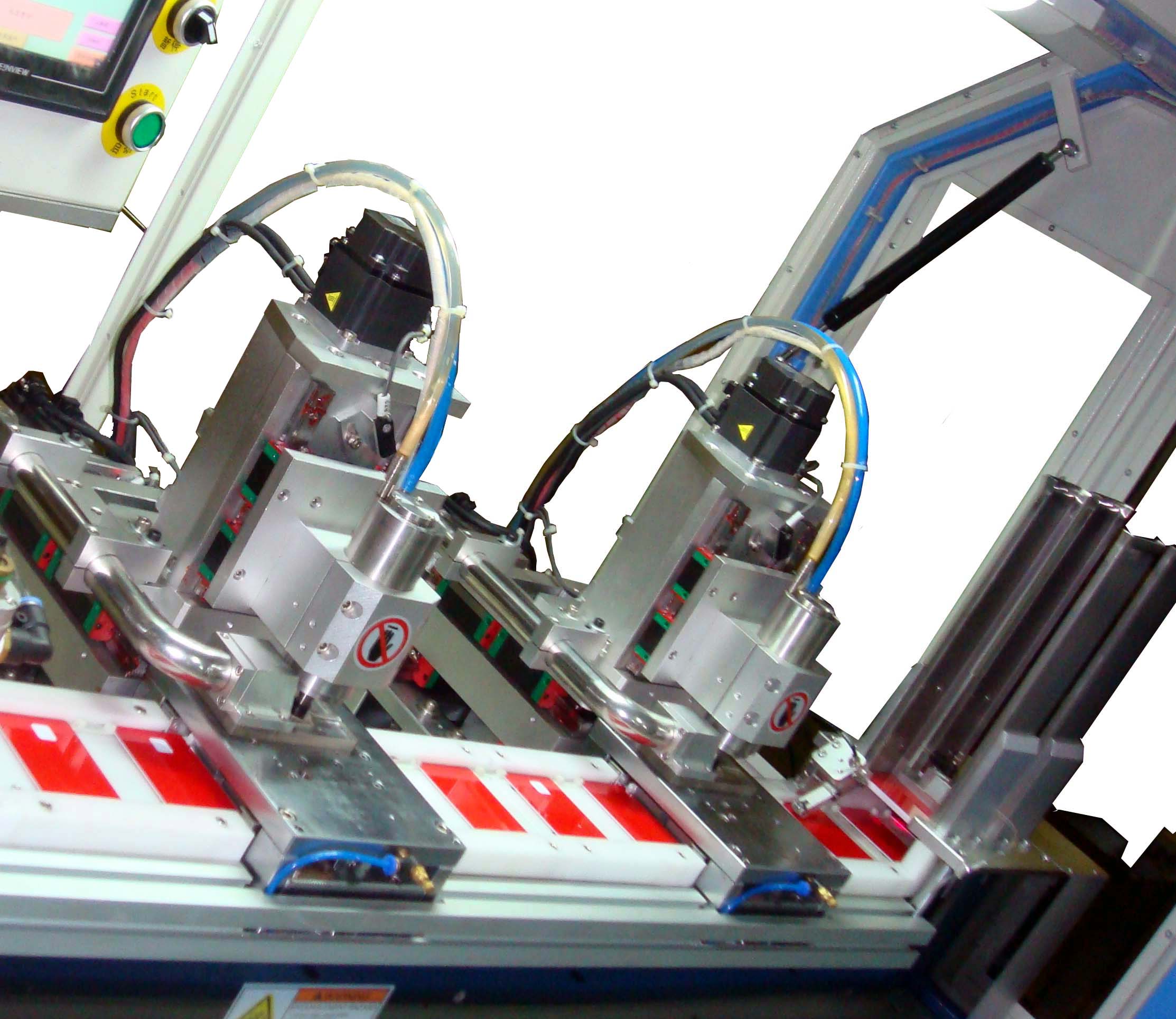

Card feeding magazines (two) –slot milling station #1-slot milling station #2-depth detection stations (two)(optional)-dust absorber -Card Collection magazines (two)

• Double-card conveying system can ensure that two cards are milled at the same time in a speedy way.
• Three-shaft positioning control system drives servo motor to mill the slots of plastic cards.
• The parameters of each shaft can be adjusted respectively, and the milling precision can’t be affected by the diameter tolerance of the milling tool.
• If such problems as card overlapping, wrong card direction or wrong milling depth (checked by the optional depth detection station), the machine will automatically alarm and stop.

3. Technical Parameters of 3500~4500pcs/Hour Bank Card Slot Milling Machine Contact IC Card Slotter YIM-4000+

4. Application of Speed 3500~4500pcs/Hour Bank Card Slot Milling Machine Contact IC Card Slotter YIM-4000+

Card feeding magazines (two) –slot milling station #1-slot milling station #2-depth detection stations (two)(optional)-dust absorber -Card Collection magazines (two)

The equipment adopts network servo linkage control, and multiple spindle motors work synchronously, with fast speed, high accuracy, stable and reliable synchronous forming, greatly improving the production speed and yield rate of the card. The card transfer and milling positioning of the equipment adopt the most time-saving and reliable method, which improves the speed and stability of the entire machine.

ic bank card milling and embedding machine

dual interface card milling and embedding machine

acf technology milling and embedding machine

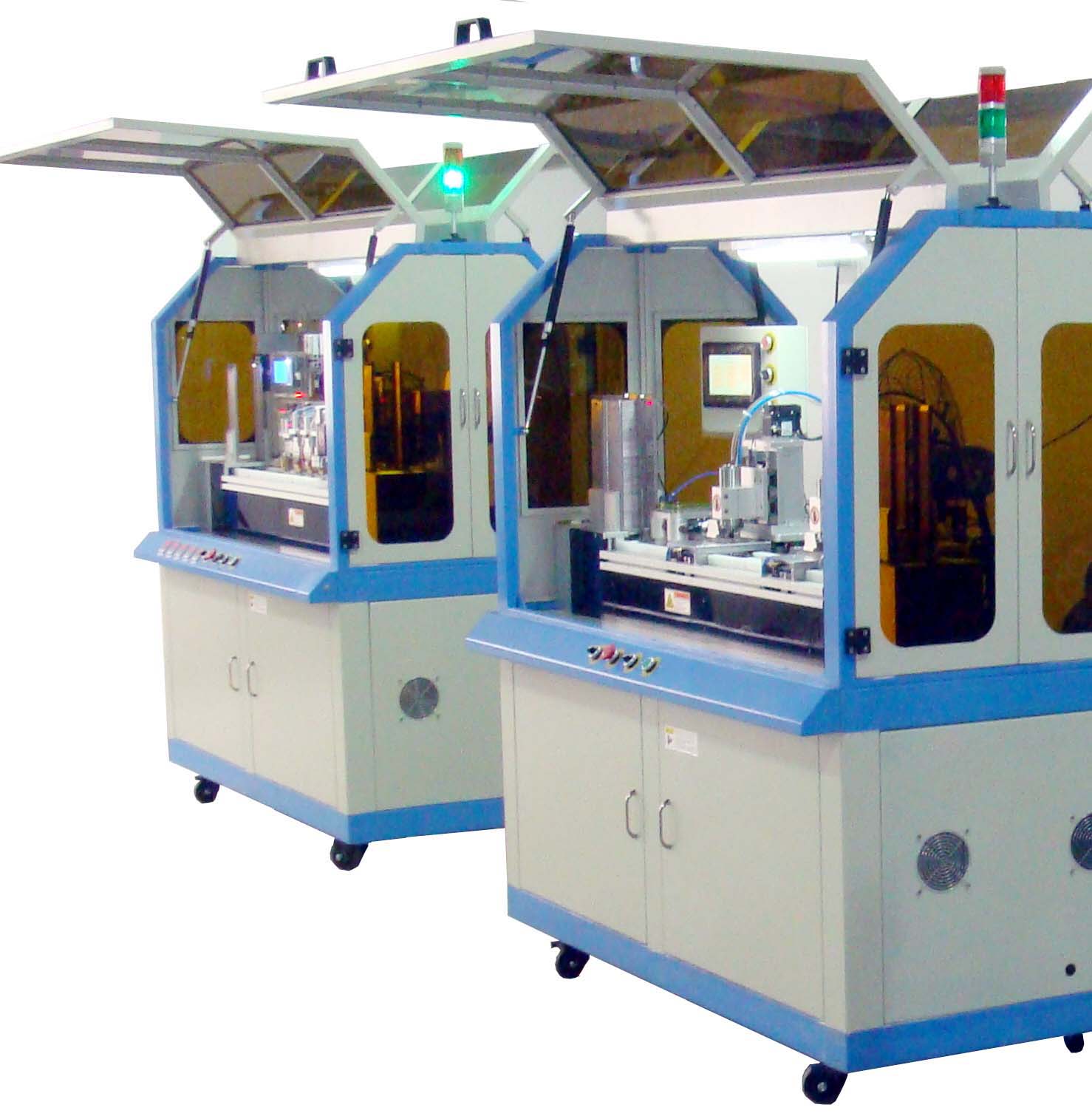

Speed 3500~4500pcs/Hour Bank Card Slot Milling Machine Contact IC Card Slotter YIM-4000+ Images
